MIL-P-83927 Power Supplies, Guided Missile Launchers, Single Types Pp-2401B/A Pp-2401C/A Pp-2401D/A, Pp-4285/A, Pp-4286/A, And Composite Type Pp-4506/A And Ps-1037This specification covers power supplies for the AIM-9 missile launcher. The power supply provides the missile with standby power, fixing power, motor drive power and amplification of audio signal.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-P-83927B(USAF)
Type PP-2401B/A, PP-2401C/A
PP-2401D/A, PP-4285/A, PP-4286/A,
CONDITION
PS1037-3C
Type PP-4506/A
Normal voltage/
93 V RMS/320 Hz
115 V RMS/320 Hz
low frequency
115 V RMS/522 Hz
93 V RMS/522 Hz
Normal voltage/
high frequency
83.7 V RMS/400 Hz
Low voltage/
102 V RMS/400 Hz
normal frequency
Low voltage/
102 V RMS/320 Hz
83.7 V RMS/320 Hz
low frequency
Low voltage/
102 V RMS/522 Hz
83.7 V RMS/522 Hz
high frequency
High voltage/
124 V RMS/400 Hz
102.3 V RMS/400 Hz
normal frequency
102.3 V RMS/320 Hz
High voltage/
124 V RMS/320 Hz
low frequency
High voltage/
124 V RMS/522 Hz
102.3 V RMS/522 Hz
high frequency
b. DC Power. Normal DC power shall be 28 VDC.
c. High Voltage Load. Normal high voltage supply load shall be 200
nilliamperes.
d. Low voltage Load. Normal low voltage load shall be 1.5 amperes.
e. High Voltage Ripple Circuit. Ripple measurements shall be taken
under a 200 milliampere load.
f. Low Voltage Ripple Measurement. Ripple measurement shall be taken

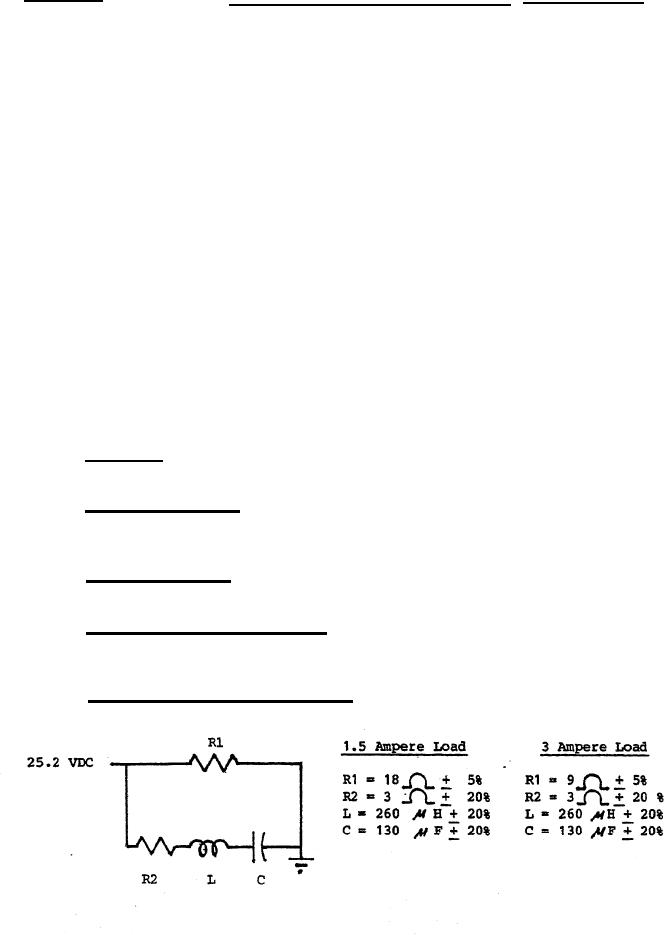

with the load circuit specified below:
94p14">14
